X4D-Z03B035-D3:3 IN 1 USB Microscope 50-1600X

X4D-Z03B035-D3:3 IN 1 USB Microscope 50-1600X

Model: X4D-Z03B035-D3
Magnification: 50-1600X
Video resolution: 640*480
Illuminant: 8 LED lights
Product description: Unite Price: 7.7usd/pc
INQUIRY

Video maximum pixel: 640*480
Image sensor: 1/6.5" color CMOS image sensor
Photo resolution: 640*480, 1280*720, 1920*1080
Video resolution: 640*480
Date format: JPEG/AVI
Focus mode: manual
Photo format: JPG/BMP
Illuminant: 8 LED lights(brightness adjustable)
Focusing range: 0~40mm
PC resolution and image transmission rate: 640*480/26FPS, 1280*720/26FPS
Sensitivity: 2.5V/lux.s
Maximum SNR(Signal Noise Ratio): 42dB
White balance: auto
Exposure: auto
PC operating system: Win10, Win8, Win7, MAC
Lens constuction: 2G+IR
Aperture: F4.5
Lens angle: 16°

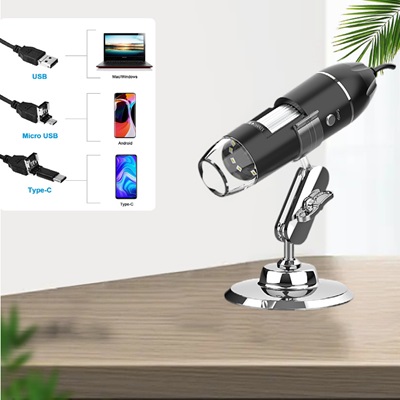

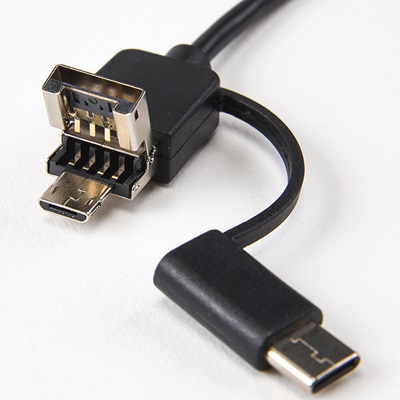

Interface and signal transmission mode: Micro/Type-c/usb2.0
Operating temperature: -20℃~75℃
Operating humidity: 30%~90%RH
Operating current: maximum 120mA

Package contents:
microscope *1
bracket *1
specification *1
straightedge *1
installation CD (contains driver software, measurement software, system components, user manual) *1
packaging: blue box

Single box weight: 180g
Color box size: 14.3*9.8*4.6cm
Outside box size: 50.5*30.5*25.5cm
Weight of 50 sets in a case: 9.6KG
